IBM logo test ROM running

This emulator was developed for the sake of learning and understanding the core functionality of computer systems at a rudimentary level. I primarily referenced this page by mattmikolay when developing the emulator and utilized Timendus’s CHIP-8 test suite to evalute the functionality and accuracy of the emulator.

Problems During Development

Something important to note about CHIP-8 is that it’s more of an interpreted programming language than an actual emulator of some real piece of hardware. As a result, certain parts of CHIP-8 aren’t well defined.

Call Stack

The call stack, which is usually some block of memory reserved for storing information regarding subroutines, doesn’t really exist within memory. CHIP-8 just handles the call stack as a seperate entity independent of the addressable memory space.

This is not how most CPUs operate since they usually need to put this call stack somewhere within RAM and access the stack through a stack pointer.

With that being said, I decided to implement the call stack as existing within the addressable memory space and adding an additional register for a stack pointer to keep track of this call stack.

It appears to work for now since most CHIP-8 programs I’ve found don’t attempt to address/manipulate memory below 0x0200 which is where I put the call stack (starting at 0x01FF and moving downward).

Instruction Set

The exact behavior of each instruction was usually outlined pretty well but some instructions needed a bit more digging.

As mentioned earlier, I used Timendus’s CHIP-8 test suite to test the accuracy of each instruction’s behavior and found that some instructions weren’t passing. Specifically 8XY1, 8XY2, 8XY3.

I found that the documentation I was using to build the emulator either missed out on the fact or is of a different implementation to the fact that these instructions needed to reset the 0x0F register. I had to do a good amount of digging online to discover this.

Again, this implementation appears to work as it passes all the tests. For now, these changes in implementation will remain.

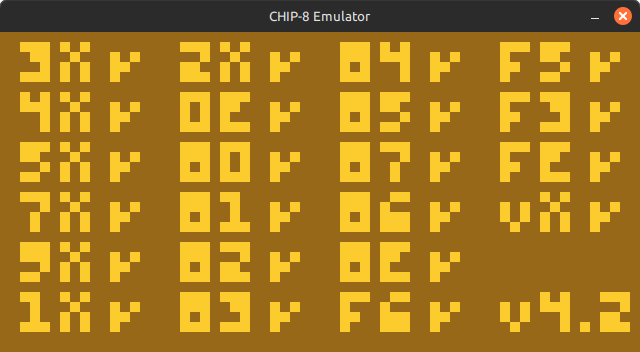

Corax test ROM running

Flags test ROM running

ROM Compatibility

I referenced this archive for CHIP-8 ROMs and found that most of them worked with my emulator.

However, I experienced some bugs with certain ROMs that I’m sure have something to do with my current implementation of the CHIP-8 instruction set.

At this point, my emulator passed all of the tests from the test suite and appears to work fine with most ROMs so I’ll leave these possible implementation issues for the future.

Future Development

Aside from investigating the issues mentioned earlier, there were several extensions of CHIP-8 that existed and the test suite I used even provides tests for these exteneded CHIP-8 versions. These being the SUPER-CHIP and XO-CHIP implementations.

I may develop and integrate these exteneded version of CHIP-8 into my emulator but I’ll leave these for the time being.

Beyond CHIP-8, I may start developing emulators for systems running on 6502 based chips but we’ll have to see.
