Building a Game Engine - 3 | Rendering with Instancing

Representing Voxel Objects

Given the context of our engine, every object can be represented as a series of voxels, each with their own positional and color information.

Since we already know the shape of each voxel beforehand, that just being a cube, it’s unnecessary for us to store the VBO, IBO, or VAO information of this mesh in every object. We can just create a single instance of the this mesh within the application and reference it whenever we render an object, using whatever positional and color information provided to augment it.

// pseudocode-ish

void render(vector<vec3> positions, vector<vec3> colors, ...) {
    VertexArray* voxel_vao = Voxel::VAO; // Our single instance voxel VAO

    // shader binding and uniform setting stuff ...

    for (int i = 0; i < positions.size(); i++) {
        // Not spec but gets the point across
        draw(voxel_vao, positions[i], colors[i]); // expensive*
    }
}

This approach works but has a major downside when implemented directly. If we just fed the renderer a ton of positional plus color data pairs and made draw calls for each pair, this would quickly result in a ton of draw calls.

The draw itself is fairly inexepensive but the actual dispatching of that call is expensive. To work around this, we take advantage of an optimization technique known as instancing where the same mesh can be drawn multiple times in a single draw call.

This requires a bit of setup but in short, we need to store the positional and color vectors in their own VBOs and bind them to our voxel VAO in a specific way that tells the shader to draw our mesh multiple times.

To contain these VBOs in a way that’s easy for the renderer and game to work with, I’ve created something called an Instanced Voxel Object or IVO.

// @file    voxel.h

class InstancedVoxelObject {
    public:
        InstancedVoxelObject(
            const std::vector<glm::u8vec3>& positions,
            const std::vector<glm::u8vec3>& colors,
        );
        ~InstancedVoxelObject();

        void bind(unsinged int pos_loc, unsigned int color_loc);
        void unbind();
        unsigned int count() const { return m_count; };

    private:
        VoxelObject* m_voxel_object;
        VertexBuffer* m_positions_vbo;
        VertexBuffer* m_colors_vbo;
        unsigned int m_count;

};

This object contains our position and color VBOs as well as the number of instances. We also store a pointer to something called a VoxelObject which is really just a struct containing the VBO, IBO, and VAO of our single voxel mesh instance. This just helps to make the binding process cleaner.

Ultimately, the game just needs to construct this object and whenever it wants it rendered, it sends it off to the renderer queue alongside some other components.

The result is that our draw() function within the renderer it fairly short.

// @file    renderer.cpp

void draw(Renderer::RenderObject& obj) {
    obj.shader->bind();
    obj.shader->set_uniform_mat4f("u_ProjMatrix", obj.proj_matrix);
    obj.shader->set_uniform_mat4f("u_ViewMatrix", obj.view_matrix);
    obj.shader->set_uniform_3f("u_ModelPosition", obj.position);

    obj.ivo->bind(1, 2);
    GL_Call(glDrawElementsInstanced(
            GL_TRIANGLES,
            Voxel::voxel_object()->m_ibo->get_count(),
            GL_UNSIGNED_INT,
            0,
            obj.ivo->count()
    ));
    obj.ivo->unbind();
    obj.shader->unbind();
}

That RenderObject is just an encapsulation of the information needed to render the object fully, namely the IVO, shader, projection and view matrices, and object position.

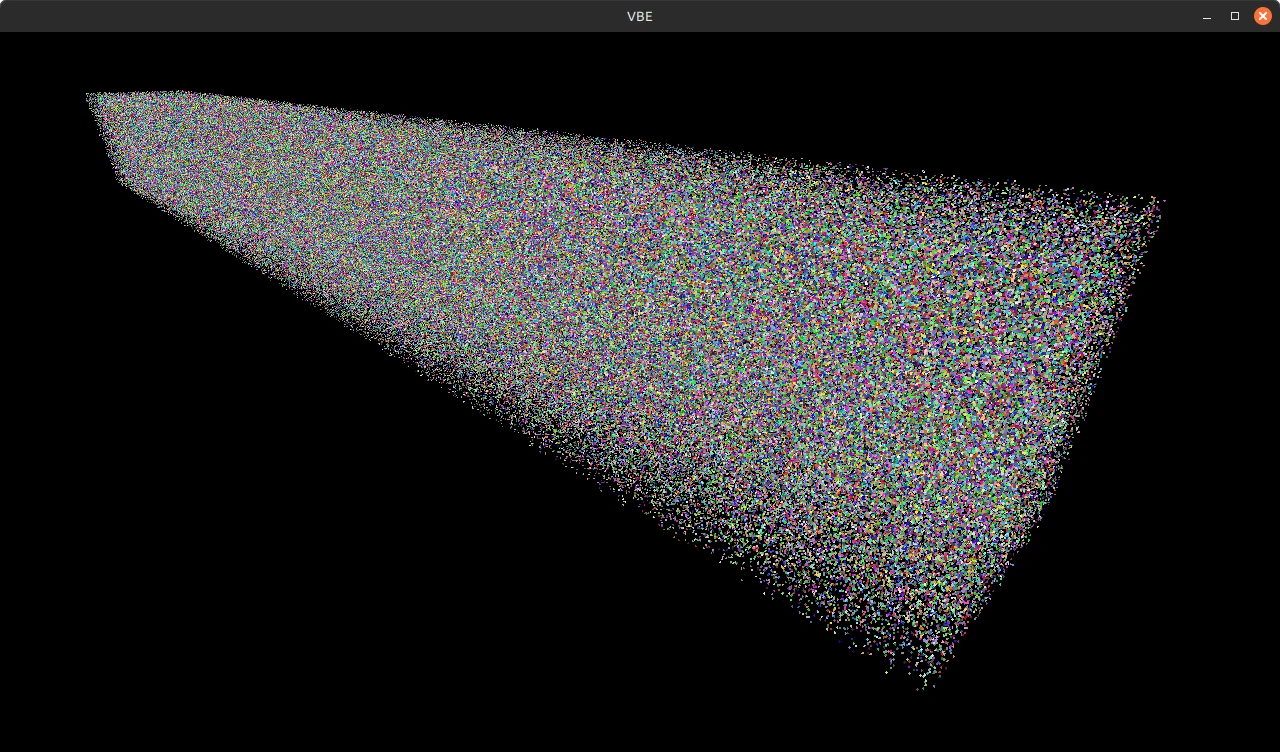

The image above provides an example of the capabilities that instancing can provide. The frame captures 10 IVOs with 100,000 voxels each for a total of 1,000,000 voxels or 12,000,000 triangles.

The performance is much faster than earlier implementations of non-instanced rendering that I experimented with but it’s not yet quantified.

Next

Performance monitoring and profiling. ImGui.
